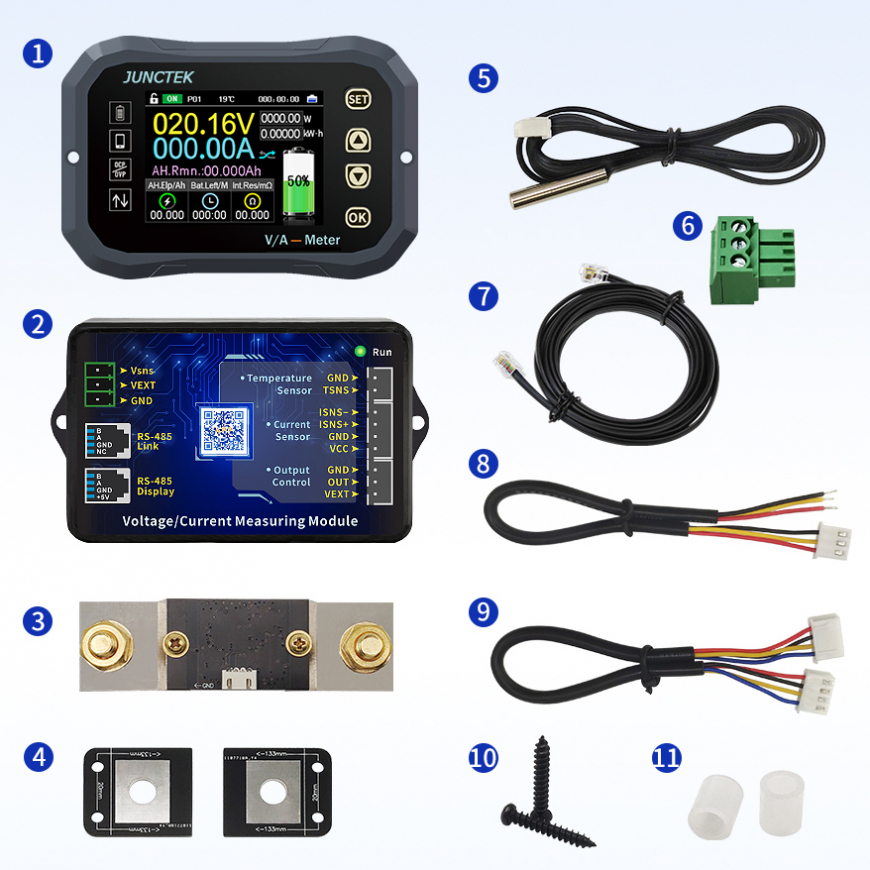

Junctek KF140G branded professional wattmeter with color TFT display.

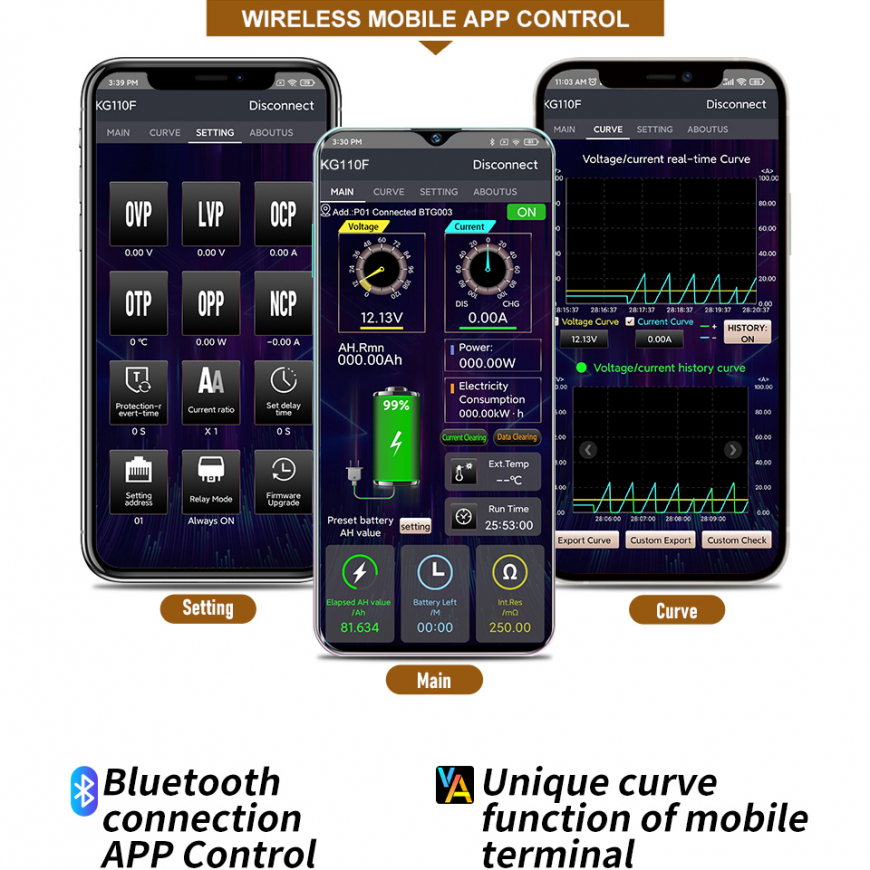

Shows voltage, charge / discharge current of the battery, amount of spent / accumulated energy, current consumption, temperature on the temperature sensor, remaining time of work or charge at the current consumption. It has an app for IOS and Android.
Allows you to start the relay, normally closed or open is selected in the application. The relay can be triggered with the following configurable parameters:
- The upper temperature threshold on the sensor (for example, battery, charger, inverter, etc.).
- Lower temperature threshold on the sensor.
- The upper threshold of the voltage or the remaining capacity.
- Lower threshold of voltage or remaining capacity.
- Exceeding the specified load power or current
- Exceeding the specified power or charging current of the battery
It is also possible to set the delay time for the relay start and the time for its reverse activation.
Designed for direct current from 0 to 400A. The peak value can be up to 1000A.
Operating voltage range 0-100V.
